LPS Digital Yokogawa EJA Pressure Transmitter Gauge 20mA

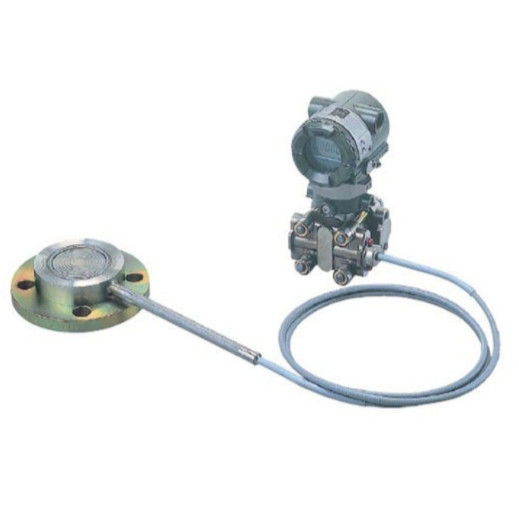

EJA438E-JBSCG-917DJ Gauge Pressure Transmitter with Remote Diaphragm Seal

Description:

Manufacturer : Yokogawa

Product No. : EJA438E-JBSCG-917DJ-WA22C2TW00-BA25

Product type : EJA438E Diaphragm sealed gauge pressure transmitter

EJA438E : Diaphragm sealed gauge pressure transmitter

J - Output signal : 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

S : Always S

C : Always C

G - Coverflange bolts and nuts material : 316L SST

9 - Installation : Horizontal piping type and left side high pressure

1 - Amplifier housing : Cast aluminum alloy

D - Integral indicator : Digital indicator

W - Process connection style : Flush type

B - Fill Fluid : For general use (silicone oil)

Process temperature : –30 to 180°C

Ambient temperature : –15 to 60°C

A - Capillary connection : Side of diaphragm seal unit

2 : Always 2

5 : Capillary length : 5 m

Weight : 9.8 Kg

The EJA438E is a gauge pressure transmitter with a remote diaphragm seal in the series.

EJA438E Standard features include:

± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation

Additional Informaiton:

EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter

Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months
