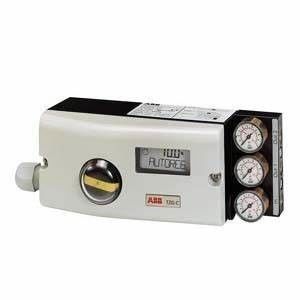

Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal
  • Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal
  • Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal
  • Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal
  • Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal
  • Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal
Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal

Digital HART Electro Pneumatic ABB Valve Positioner TZIDC Metal

Place of Origin Germany
Brand Name ABB
Certification ROHS
Model Number V18345-1011421001
Product Details
Color:
White
Origin:
Germany
Material:
Metal
Communication:
Digital HART Communication
Approvals:
Worldwide Intrinsic Safety Approvals
Protection Class:
IP67
Model:
V18345-1011421001
Product Name:
ABB TZIDC Intelligent (Smart) Digital Positioner
Highlight:

metal ABB Valve Positioner

,

Digital HART ABB Valve Positioner

,

HART tzidc electro pneumatic positioner

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
carton 30*25*25cm
Delivery Time
on request
Payment Terms
T/T
Product Description

ABB TZIDC Intelligent (Smart) Digital Positioner V18345





ABB Series of TZIDC Intelligent, also known as "smart" positioners combines high accuracy, adaptable control functions and easy commissioning using the auto stroke functions. The TZIDC is idealy suited for both mounting on control valves using rotary actuators using standard Namur mounting hardware, but can also be used for linear control valves. Options include a gauge block, and analog/digital feed back.
The standard model TZIDC-100 ( V18345 ) comes with HART communication, and Profibus The TZIDC-110 ( V18346 ) Profibus the and TZIDC-120 ( V18347 ) with Fieldbus. The TZIDC can be set up for single and double acting actuators and fail safe (open or close) or fail freeze (hold last position)

Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

The TZIDC can be used in general purpose and hazardous area with intrinsically barriers and FM/CSA and ATEX approvals are available. The TZIDC positioners are made in Germany. The units which we sell are supplied by ABB-USA.





TZIDC Positioner Features
Manual intervention during live operation
Linear or Rotary actuation
Single or Double acting models
Reduced operating cost with very low air consumption of 0.015scfm at steady state
16000 step A/D conversion provides unsurpassed positioning accuracy (rev 3.00)
One device for single and double acting applications
One device for Linear and Part turn actuators
Adaptive Gain allows real time optimization of control parameters





TZIDC Positioner Benefits
Excellent price vs. performance
Local control panel allows access to setup and control parameters
Local LCD allows view of valve position and alarm conditions
Advanced AUTOSTROKE ensures user friendly actuator commissioning
Fail-In-Place or Fail safe option for loss of mA set-point signal
Unsurpassed immunity to process vibrations up to 10g 80Hz
One device for Linear and Part turn actuators
Adaptive Gain allows real time optimization of control parameters






Common Models:



V18345-1010121001 V18345-2020421001
V18345-1010551001 V18345-2027121001
V18345-1021421001 V18345-1010221001
V18345-2020521501 V18345-1010521001
V18345-2010521001 V18345-2021421001
V18345-1017421001 V18345-2010251001
V18345-1011150001 V18345-1020420001
V18345-1021521001 V18345-1021421001
V18345-2020460001 V18345-2011420001
V18345-2010551001 V18345-2020221501
V18345-1020461001 V18345-2021121001
V18345-1011220001 V18345-2010121001
V18345-1027121001 V18345-2010251001
V18311H-482110100 V18345-2020121001
V18345-1010261001 V18345-2021421001
V18345-1011520001 V18345-1011421001
V18345-1020520001 V18348-10111200110
V18345-302712100ZCN V18348-10111300110
V18345-2011420001 V18348-10111200110
V18345-2021120001 V18348-10111310110
V18345-2010221001 V18348-10112300110
V18345-2020221001 V18348-10111200110
V18345-2021521001 V18311H-112110100
V18345-1010120001 V18311H-182110100
V18345-1010421001 V18311H-382110100
V18345-1020121001 V18345-2017420001
V18345-1020560001 V18345-2010421001
