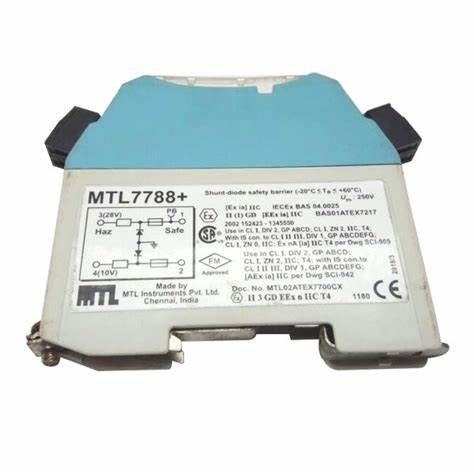

MTL7788 Intrinsically Safe Zener Safety Barrier Encoder DIN Rail Mounting

MTL7788+|  Instruments | Proximity Detector Interface

MTL7788+ DIN rail mounting isolation barrier, MTL7700 series DIN rail mounting safety barrier.
- Removable terminals
- Bus power supply for other modules
- Relay and solid-state switching modules
- Dual channel variants - 6.3 mm per channel
- Proximity detector inputs
- Electronically fused
- Direct replacement MTL700 range barrier
- Compatible with terminal numbers and safety instructions

All MTL7700 series Zener barriers are designed according to the same design principles. Each channel consists of a secondary pulse detecting Zener or forward connecting diode and a “reliable” terminating resistor. In the event of an electrical fault in the safety zone, the diode limits the voltage that can reach the hazardous area, while the resistor has a current limiting effect. A fuse protects the diode, and a two-stage voltage limiting function ensures continuous protection in the event of a failure in either stage. No active output current limiting circuitry is used. All models are certified “ia” - for all zones and “IIC” - for all explosive atmospheres (except MTL7707P+ and MTL7729P+, “ia” “IIB”).
