Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN
  • Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN
  • Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN
  • Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN
  • Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN
Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN

Custom IP66 VEGA Level Meter Switch Transmitter VEGASWING 63 CAGBVXPN

Place of Origin GERMANY
Brand Name VEGA
Certification ROHS
Model Number SWING63.CAGBVXPN
Product Details
Process Temperature:
-50 ... 250 °C
Process Pressure:
-1 ... 64 Bar
Housing Material:
Plastic
Protection Rating:
IP66/IP67
Ambient Temperature:
-40 ... 70 °C
Threaded Connection:
≥ G¾, ≥ ¾ NPT
Model:
VEGASWING 63.CAGBVXPN
Origin:
Germany
Highlight:

VEGASWING 63 VEGA Level Meter

,

IP66 VEGA Level Meter

,

63 vega level transmitter

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
CARTON
Delivery Time
Negotiable
Payment Terms
T/T
Supply Ability
500+pcs+on stock
Product Description

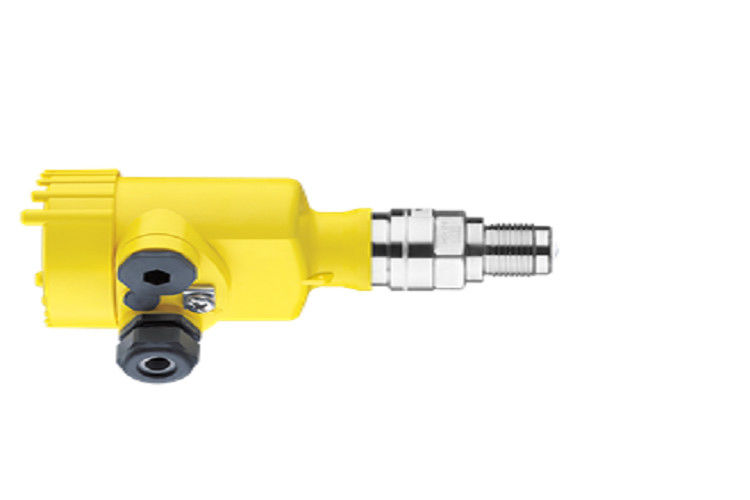

VEGASWING 63.CAGBVXPN Vibrating level switch with tube extension for liquids









Part Number: VEGASWING 63.CAGBVXPN
Product Name: Vibrating level switch
Origin: Germany
Vibrating level switch with tube extension for liquids
For liquids (density: > 0.5 ... 2.5 g/cm³) – with tube extension



Application area
The position of the switching point can be up to 6 m away from the installation site. Numerous process fittings, approvals as well as housing and electronics versions.

VEGASWING 63 is used as a universal level switch in all liquids. Independent of the mounting position it detects reliably with millimetre accuracy the level. The instrument can be used in vessels as empty or full detector, as approved overfill protection, dry run protection or pump protection. The position of the switching point is determined through the tube extension. The VEGASWING 63 offers high reliability and security in a wide application range.



Your benefit
Precise and reliable function due to product-independent switching point
Low maintenance costs
Minimum time and cost expenditure thanks to simple setup without medium




Technical specifications
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
Version
Standard
Hygienic applications
with gas-tight leadthrough
with tube extension
with temperature adapter


Materials, wetted parts
PFA
316L
Alloy C22 (2.4602)
Alloy 400 (2.4360)
ECTFE
Enamel
Threaded connection
≥ G¾, ≥ ¾ NPT
Flange connection
≥ DN25, ≥ 1"





Important Terms:



1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 8kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months
