CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
  • CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
  • CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
  • CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
  • CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe
  • CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe

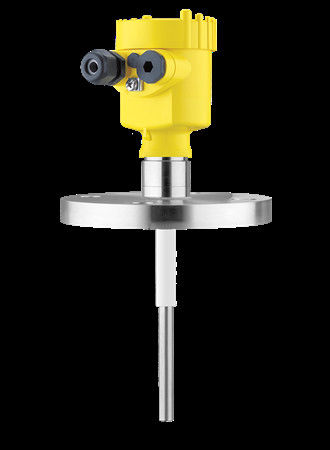

CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe

Place of Origin DE
Brand Name vega
Model Number CP62.XXBGARAMX
Product Details
Measuring Unit For Lengths:
Metre / Millimetre
Version / Process Temperature:
Standard / -50...+200°C
Process Fitting / Material:
Thread G¾ PN64, DIN3852-A / 316L
Approval Directive / Scope:
None / World-wide
Electronics:
Relay (DPDT) 20 ... 72 V DC/20 ... 253 V AC (3A)
Housing / Protection:
Aluminium Single Chamber / IP66/IP67
Cable Entry / Cable Gland / Plug Connection:
M20x1.5 / With / Without
Highlight:

CP62 VEGA Level Meter

,

Capacitive VEGA Level Meter

,

CP62 ultrasonic level transmitter vega

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description

CP62.XXBGARAMX VEGA Level Meter Capacitive Rod Probe For Level Detection


Technical specifications
Measuring range - Distance
- [Meter - Foot]
Process temperature
-50 ... 200 °C [°C - °F]
Process pressure
-1 ... 64 bar [Bar - kPa - psi]
Version
with screening tube PN1
Standard
Materials, wetted parts
PTFE
316L
Alloy 400 (2.4360)
PEEK
Steel C22.8
Threaded connection
≥ G½, ≥ ½ NPT
Flange connection
≥ DN25, ≥ 1"
Seal material
no media contact
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire
Ambient temperature
-40 ... 80 °C

Application area

For liquids and bulk solids, Sensor length up to 6 m
The VEGACAP 62 is a point level sensor for use in all areas of industry. The partly insulated probe is suitable for measurement of bulk solids and liquids. The proven mechanical construction offers high functional safety.

Your benefit

  • High flexibility through shortenable probe
  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Universal use in all products


CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe 0

CP62.XXBGARAMX Ultrasonic VEGA Level Meter Transmitter Capacitive Rod Probe 1

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)
