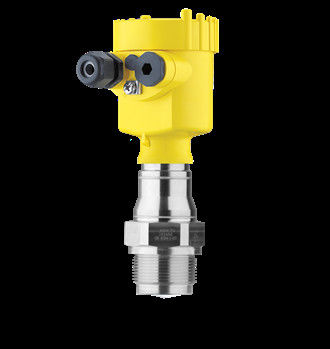

PS69.AXCSABHXAMKRX VEGA Level Meter Radar Sensor For Continuous Level Measurement

PS69.AXCSABHXAMKRX VEGA Level Meter Radar Sensor For Continuous Level Measurement

Place of Origin DE
Brand Name vega
Model Number PS69.AXCSABHXAMKRX
Product Details
Approval:
For Ex-free Area
Electronics:
Two-wire 4 ... 20 MA/HART
Supplementary Electronics:
Without
Housing / Protection:
Aluminium Single Chamber / IP66/IP68 (0.2bar)
Max. Measuring Range:
120m
HS Code:
90318080
Highlight:

Continuous VEGA Level Meter

,

VEGA Level Meter Radar Sensor

,

PS69.AXCSABHXAMKRX

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
Product Description

PS69.AXCSABHXAMKRX VEGA Level Meter Radar Sensor For Continuous Level Measurement Of Bulk Solids



Technical specifications
Measuring range - Distance
120 m [Meter - Foot]
Process temperature
-40 ... 200 °C [°C - °F]
Process pressure
-1 ... 20 bar [Bar - kPa - psi]
Accuracy
± 5 mm / ± 0.2"
Frequency
80 GHz
Beam angle
≥ 3,5°
Version
with plastic horn antenna ø 80 mm
Metal jacketed lens antenna
Materials, wetted parts
316L
PP
PEEK
Threaded connection
G1½, 1½ NPT
Flange connection
≥ DN80, ≥ 3"
Seal material
EPDM
FKM
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART - two-wire
Modbus
4 … 20 mA/HART - four-wire
Ambient temperature
-40 ... 80 °C


Application area

Special advantages are the small process fittings for small vessels or tight spaces. The very good signal focusing allows use in large silos or vessels with many internal installations.
The VEGAPULS 69 is a sensor for continuous measurement of bulk solids under different process conditions. It is ideal for level measurement in very high silos, large bunkers and segmented vessels. Thanks to the very good signal focussing a simple setup and reliable measurement is ensured. The VEGAPULS 69 can be equipped with an encapsulated plastic antenna or a lens antenna integrated in the metal flange. This enables the optimum adaption to different application areas.


Your benefit

  • High plant availability, because wear and maintenance-free
  • Maintenance-free operation through non-contact measuring principle
  • Reliable measurement independent of vapour, dust and noise
